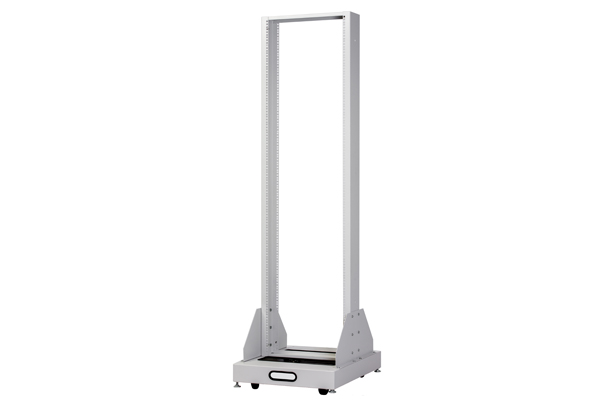

19″ Open Rack

• Design: 19” Open Rack is designed and produced to be the Modular Knock-down System which is very easy to assemble.
• Material: The rack is made of 2.0 mm Electro-Galvanized steel Sheet which is a thick, durable and 100 % rustproof material.
• Frame: Vertical Mounted Frame is made of 2.0 mm Electro-Galvanized Steel Sheet which is a thick, durable and 100% rustproof material. It can be adjusted three steps depending on the depth of the rack as requirement.
• Base: A base of the rack is made of 2.0 mm Electro-Galvanized Steel Sheet and a base for casters is made of 3.0 mm Electro-Galvanized Steel Sheet which are thick, durable and 100% rustproof.

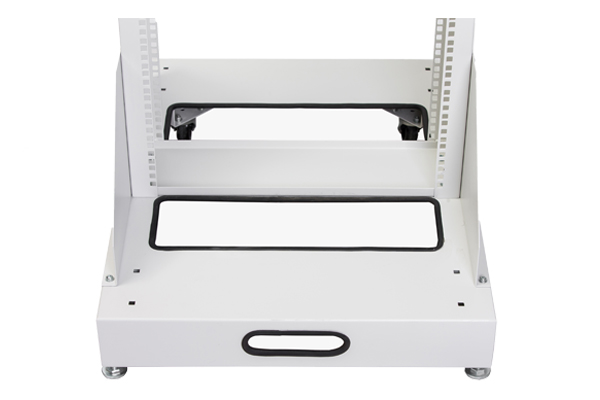

• Bottom Rack: The bottom rack can put cables through the hole.
• Stands: The rack has four stands which are easy to adjust as requirement.
• Casters: The rack has four casters which are made of white Nylon Six. The casters can turn around 360 degree and load 150 kg. /caster.
• Ground System: There is the Ground System all parts of the rack with the earth cable kit.
• Color: The rack is coated with powder epoxy by Electro-Static System for strength.
• Accessories: The rack is designed to provide customers with M6 bolts, cage nuts and plastic washers.
• Quality Product Standard: The racks meet quality product standards which are ANSI/EIA-310D-1992 (Rev.EIA-210-C), IEC 60297-1, IEC 60297-2, BS 5954: Part 2, DIN 41494.
• Manufacturing standard: ISO 9001:2000 Company
